Numbered Menu Repeater - starting at 2, instead of 1

what's your data source for the numbering?

Pages that are under the datalist group.

Here is the transformation Code <%# IsCurrentDocument() ? "<div class=\"IndexCircle\"><div class=\"Num\">" + (DisplayIndex + 1) + "</div></div>" : "" %> Here is the script:

<script runat=server>
protected string OutputMenuItemLI(object DataItem)
{
  bool isTrainingOption = (string)DataBinder.Eval(DataItem, "ClassDisplayName") != "Page (menu item)";
  string DocumentName = HTMLEncode(DataBinder.Eval(DataItem, "DocumentName") as string);
  string DocumentMenuCaption = DataBinder.Eval(DataItem, "DocumentMenuCaption") as string;

  string liHTML = "<li class=\"" + (IsCurrentDocument() ? "CMSListMenuHighlightedLI" : "CMSListMenuLI");
  if (isTrainingOption)
    liHTML += " Circle";
  liHTML += "\">";

  liHTML +="<a href=\"" + GetDocumentUrl() + "\"";
  liHTML += " class=\"" + (IsCurrentDocument() ? "CMSListMenuLinkHighlighted" : "CMSListMenuLink") + "\"";
  liHTML += " title=\"" + DocumentName + "\">";

  if (isTrainingOption)
    liHTML += "<div class=\"IndexCircle\">" + DisplayIndex + "</div>";

  liHTML += "<span class=\"linkText\">";
  liHTML += String.IsNullOrEmpty(DocumentMenuCaption) ? DocumentName : DocumentMenuCaption;
  liHTML += "</span></a>";
  liHTML += "</li>";

  return liHTML;

}
</script>
<%# Eval<bool>("DocumentMenuItemHideInNavigation") ? "" : OutputMenuItemLI(DataItem) %>

Here is transformation.

Here is transformation: <%# IsCurrentDocument() ? "<div class=\"IndexCircle\"><div class=\"Num\">" + (DisplayIndex + 1) + "</div></div>" : "" %>

Looks like DisplayIndex now starts at 1 instead of 0, you can do a quickfix on the transformation: (DisplayIndex + 1) to just (DisplayIndex)

It is DisplayIndex +1. Here is my transformation. Oddly, it shows the numbers correctly in the CMS. Just not on the web. <%# IsCurrentDocument() ? "<div class=\"IndexCircle\"><div class=\"Num\">" + (DisplayIndex + 1) + "</div></div>" : "" %>

looking at your code, in the server side script you are just using DisplayIndex not DisplayIndex + 1.

 liHTML += "<div class=\"IndexCircle\">" + DisplayIndex + "</div>";

but in your transformation,

"<div class=\"IndexCircle\"><div class=\"Num\">" + (DisplayIndex + 1) + "</div></div>"

I see now. It is in the script itself. Do I just change the DisplayIndex to (DisplayIndex + 1)in the script?

<script runat=server>
protected string OutputMenuItemLI(object DataItem)
{
  bool isTrainingOption = (string)DataBinder.Eval(DataItem, "ClassDisplayName") != "Page (menu item)";
  string DocumentName = HTMLEncode(DataBinder.Eval(DataItem, "DocumentName") as string);
  string DocumentMenuCaption = DataBinder.Eval(DataItem, "DocumentMenuCaption") as string;

  string liHTML = "<li class=\"" + (IsCurrentDocument() ? "CMSListMenuHighlightedLI" : "CMSListMenuLI");
  if (isTrainingOption)
    liHTML += " Circle";
  liHTML += "\">";

  liHTML +="<a href=\"" + GetDocumentUrl() + "\"";
  liHTML += " class=\"" + (IsCurrentDocument() ? "CMSListMenuLinkHighlighted" : "CMSListMenuLink") + "\"";
  liHTML += " title=\"" + DocumentName + "\">";

  if (isTrainingOption)
    liHTML += "<div class=\"IndexCircle\">" + DisplayIndex "</div>";

  liHTML += "<span class=\"linkText\">";
  liHTML += String.IsNullOrEmpty(DocumentMenuCaption) ? DocumentName : DocumentMenuCaption;
  liHTML += "</span></a>";
  liHTML += "</li>";

  return liHTML;

}
</script>
<%# Eval<bool>("DocumentMenuItemHideInNavigation") ? "" : OutputMenuItemLI(DataItem) %>

Change in the code that shows DisplayIndex in the site menu, not sure if it's the transformation or server side code, better test it first :)

I tried adding it in in the script, and it breaks the menu part of the page. Weird thing is, it shows the correct numbers IN the cms, just not on the published page.

How is the menu broken? Inspect the html code generated also share the revised code

If I add a 1 to the script - when you click the dropdown menu, you see: [TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expected[TempITemplate.Template]: http://server/CMSVirtualFiles/Transformations/=vg=be410550-d7c6-4089-a3b8-eb29e79c16c4/CMS.MenuItem/MACEM_Menu_ASCX.ascx(19): error CS1002: ; expectedtext

When I look at the page source, it shows the first menu item (Independent Study Conversion) as 1, as it should be, but on the page itself, it is showing as 2.

can you show your code changes?

There do not appear to be any changes in the source code.

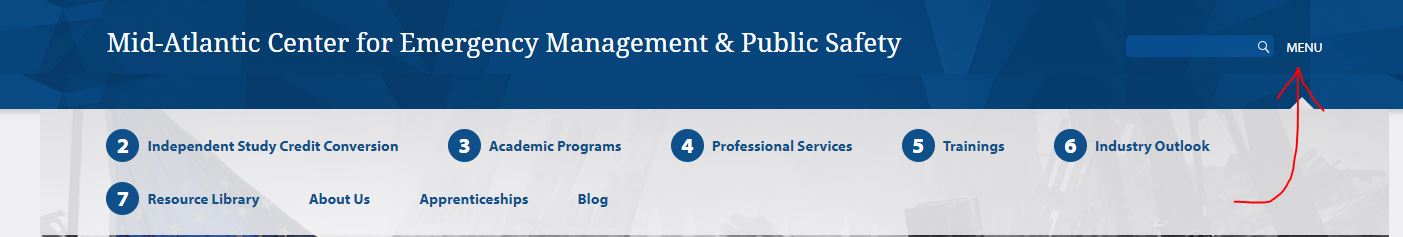

Here is the menu. As you can see, Independent Study is 2. It should be 1.

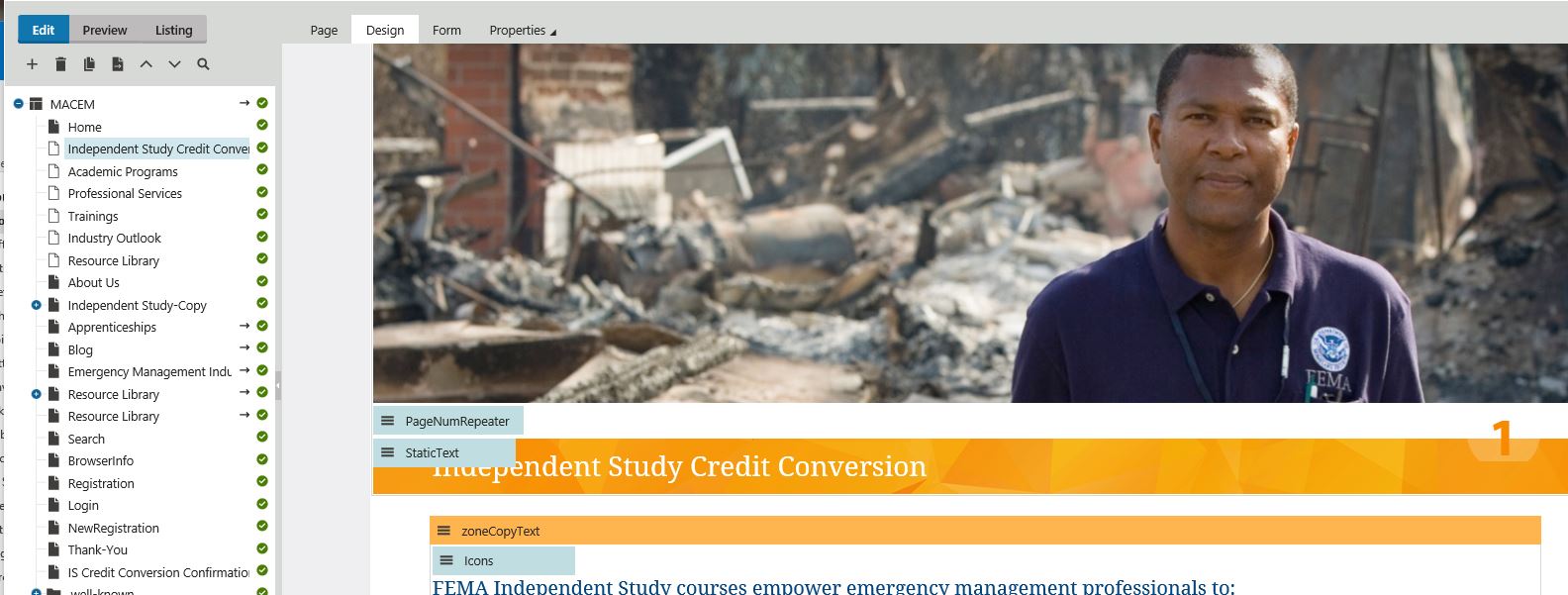

Here is the page itself, within the CMS.

The PageNumRepeater feeds the menu.

sorry can't see the images, what code changes did you make?

http://www.macem.org/MACEM/media/MACEM_Images/MenuDropDown.JPG

http://www.macem.org/MACEM/media/MACEM_Images/IndependentStudy.JPG

It looks like you're using version 10 portal engine. I'd highly recommend using a universal/hierarchial viewer. In those transformations at given levels, you can take advantage of the NodeLevel value to determine your numbering schema.

Another option if you plan to use that number in different areas of the site is to add a field with a dropdown selector to the page type. This may be a better solution so you don't have to worry about trying to dynamically get/generate everything (which may be overcomplicating something very simple).

Can you clarify what you mean by universal/hierarchical viewer? Our college upgraded the main cms to version 12, but this site, is for a sub-group within the college called MACEM (Mid-Atlantic Center for Emergency Management), and it uses a stand alone free version.

If I want to do the second option you mentioned, would I just add the field to the transformation?

Here is the transformation code: <%# IsCurrentDocument() ? "<div class=\"IndexCircle\"><div class=\"Num\">" + (DisplayIndex + 1) + "</div></div>" : "" %>

The field would need to be added to the page type being used. Once it's added to the page type, you need to populate the field with data from the Pages application for each page. After you populate that data then you need to update your transformation to get that data from the page.

It sounds like you're either very new to Kentico or don't know the backend configuration/development abilities within Kentico, so this may be a bit more of a task than you're able to take on.

what's the effect if you changed:

<%# IsCurrentDocument() ? "<div class=\"IndexCircle\"><div class=\"Num\">" + (DisplayIndex + 1) + "</div></div>" : "" %>

to just

<%# IsCurrentDocument() ? "<div class=\"IndexCircle\"><div class=\"Num\">" + DisplayIndex + "</div></div>" : "" %>

I checked the generated page code and the menu starts with 2 while another section starts with 1.

I have created new page types and transformations, but don't know much about the back end. I will add a new field to the page type and adjust the transformation.

The menu on this page used to work, so I am not sure why it starting using 2 as the starting number.

L Younkins - I replicated this requirement in my local(Corporate website) as per your requirement using DataList web part.

1. DataList webs part settings

• Path:/Products/%
• Maximum nesting level:1
• ORDER BY expression:NodeOrder
• WHERE condition:DocumentMenuItemHideInNavigation=0
• Transformation:[transforation name]

2.Transformation (ASCX)

<li>
 <a href="<%#GetDocumentUrl()%>"> <%# Eval("ClassName").ToString().Contains("CMS.MenuItem") ? DisplayIndex + 1 + "." : ""%>
 <%# Eval("DocumentName")%> [<%# Eval("ClassName")%>]
   </a>
</li>

3.Refer attached screenshot for Content tree structure and result on page

Content Tree Structure:

Result on Web page:

Hope it helps you!!

The transformation for the menu uses a script. It worked properly last week. I created a new page this week, but it was in the wrong place, so I deleted it. This is when the numbering issue started. The issue is only on the dropdown menu. The page numbers are correct on the pages themselves. Here is the script it is using.

    <script runat=server>
protected string OutputMenuItemLI(object DataItem)
{
  bool isTrainingOption = (string)DataBinder.Eval(DataItem, "ClassDisplayName") != "Page (menu item)";
  string DocumentName = HTMLEncode(DataBinder.Eval(DataItem, "DocumentName") as string);
  string DocumentMenuCaption = DataBinder.Eval(DataItem, "DocumentMenuCaption") as string;

  string liHTML = "<li class=\"" + (IsCurrentDocument() ? "CMSListMenuHighlightedLI" : "CMSListMenuLI");
  if (isTrainingOption)
    liHTML += " Circle";
  liHTML += "\">";

  liHTML +="<a href=\"" + GetDocumentUrl() + "\"";
  liHTML += " class=\"" + (IsCurrentDocument() ? "CMSListMenuLinkHighlighted" : "CMSListMenuLink") + "\"";
  liHTML += " title=\"" + DocumentName + "\">";

  if (isTrainingOption)
    liHTML += "<div class=\"IndexCircle\">" + DisplayIndex +  "</div>";

  liHTML += "<span class=\"linkText\">";
  liHTML += String.IsNullOrEmpty(DocumentMenuCaption) ? DocumentName : DocumentMenuCaption;
  liHTML += "</span></a>";
  liHTML += "</li>";

  return liHTML;

}
</script>
<%# Eval<bool>("DocumentMenuItemHideInNavigation") ? "" : OutputMenuItemLI(DataItem) %>

I did not understand why you mentioned two times the following condition in your script -

if (isTrainingOption)

I didnt write the script. It has been in place and working, for 5 years. It is also using the following transformation:

<%# IsCurrentDocument() ? "<div class=\"IndexCircle\"><div class=\"Num\">" + (DisplayIndex + 1) + "</div></div>" : "" %>

TrainingOption is the page type.

Is it developed on Portal Engine Or ASPX model? Please share here how they declared datalist web part on Master page.

Developed in Portal version 10.

This is the script that I think powers the drop down menu at the top: <script runat=server>
    protected string OutputMenuItemLI(object DataItem)
    {
      bool isTrainingOption = (string)DataBinder.Eval(DataItem, "ClassDisplayName") != "Page (menu item)";
      string DocumentName = HTMLEncode(DataBinder.Eval(DataItem, "DocumentName") as string);
      string DocumentMenuCaption = DataBinder.Eval(DataItem, "DocumentMenuCaption") as string;

      string liHTML = "<li class=\"" + (IsCurrentDocument() ? "CMSListMenuHighlightedLI" : "CMSListMenuLI");
      if (isTrainingOption)
        liHTML += " Circle";
      liHTML += "\">";

      liHTML +="<a href=\"" + GetDocumentUrl() + "\"";
      liHTML += " class=\"" + (IsCurrentDocument() ? "CMSListMenuLinkHighlighted" : "CMSListMenuLink") + "\"";
      liHTML += " title=\"" + DocumentName + "\">";

      if (isTrainingOption)
        liHTML += "<div class=\"IndexCircle\">" + DisplayIndex +  "</div>";

      liHTML += "<span class=\"linkText\">";
      liHTML += String.IsNullOrEmpty(DocumentMenuCaption) ? DocumentName : DocumentMenuCaption;
      liHTML += "</span></a>";
      liHTML += "</li>";

      return liHTML;

    }
    </script>
    <%# Eval<bool>("DocumentMenuItemHideInNavigation") ? "" : OutputMenuItemLI(DataItem) %>

try to do a minor non-visible change on that code and see if it is reflected on the page and confirm that this code fragment is driving the menu. it looks like it is based on the generated page but better to confirm.

your generated code starts with:

<ul id="RepeaterMenu" class="CMSListMenuUL">
  ....menu items here
</ul>

The menu itself, is a repeater on the master page. I tried adding a period within the

(in the html envelope) and it showed up in the menu. I have since removed it.

Here are what the menu repeater properties look like: http://www.macem.org/MACEM/media/MACEM_Images/MenuRepeater.JPG http://www.macem.org/MACEM/media/MACEM_Images/MenuRepeaterProperties.JPG

Here is the transformation code for the repeater:

    <script runat=server>
protected string OutputMenuItemLI(object DataItem)
{
  bool isTrainingOption = (string)DataBinder.Eval(DataItem, "ClassDisplayName") != "Page (menu item)";
  string DocumentName = HTMLEncode(DataBinder.Eval(DataItem, "DocumentName") as string);
  string DocumentMenuCaption = DataBinder.Eval(DataItem, "DocumentMenuCaption") as string;

  string liHTML = "<li class=\"" + (IsCurrentDocument() ? "CMSListMenuHighlightedLI" : "CMSListMenuLI");
  if (isTrainingOption)
    liHTML += " Circle";
  liHTML += "\">";

  liHTML +="<a href=\"" + GetDocumentUrl() + "\"";
  liHTML += " class=\"" + (IsCurrentDocument() ? "CMSListMenuLinkHighlighted" : "CMSListMenuLink") + "\"";
  liHTML += " title=\"" + DocumentName + "\">";

  if (isTrainingOption)
    liHTML += "<div class=\"IndexCircle\">" + DisplayIndex +  "</div>";

  liHTML += "<span class=\"linkText\">";
  liHTML += String.IsNullOrEmpty(DocumentMenuCaption) ? DocumentName : DocumentMenuCaption;
  liHTML += "</span></a>";
  liHTML += "</li>";

  return liHTML;

}
</script>
<%# Eval<bool>("DocumentMenuItemHideInNavigation") ? "" : OutputMenuItemLI(DataItem) %>

I have replicated same on my local (Kentico 10) and it is working fine as expected with the following change - liHTML += "<div class=\"IndexCircle\">" + (DisplayIndex + 1) + "</div>"; for number start with 1.

Refer the attached screenshots for out put -

Your logic is not reflecting on Website and I am assuming problem is master page because as per your screenshot for Content tree, master page redirects to another page (right Arrow icon means URL redirection) and You can find the URL redirection settings from Properties --> navigation, menu actions and share your settings and also share Settings--> Content-> Web site content section details, refer below screenshot.

Additionally try the following options -

1. Clear cache from System--> Clear Cache and check website on Guest Browser
2. If still persisting the same issue then go with the work around fix liHTML += "<div class=\"IndexCircle\">" + (DisplayIndex - 1) + "</div>";

for number start with 1

That worked.
