The following is a step-by-step tutorial that will show you how to add a custom pager to a CMSRepeater control that displays PDAs (CMS.Pda documents) using the TemplateDataPager control:
1. Create a new Web form somewhere in your website installation directory.
2. Now add the following code to the page, inside the <form> element:
<table style="border: solid 1px #CCCCCC; margin-left: auto; margin-right: auto;"> <tr> <td style="border-bottom: solid 1px #CCCCCC; padding: 10px; text-align: center;"> <cms:CMSRepeater ID="CMSRepeater1" runat="server" Path="/%" ClassNames="CMS.Pda" TransformationName="CMS.Pda.Simple"> </cms:CMSRepeater> </td> </tr> <tr> <td style="padding: 10px; background-color: #D9D9D9;"> <cms:TemplateDataPager ID="TemplateDataPager1" runat="server"> <NumberTemplate> <a href="?Page=<%# Eval("PageNumber") %>"> <%# Eval("PageNumber") %> </a> </NumberTemplate> <SelectedNumberTemplate> <b> <%# Eval("PageNumber") %> </b> </SelectedNumberTemplate> <SeparatorTemplate> - </SeparatorTemplate> <FirstItemTemplate> <a href="?Page=1">First</a> | </FirstItemTemplate> <LastItemTemplate> | <a href="?Page=<%# pageCount %>">Last</a> </LastItemTemplate> <PreviousItemTemplate> <a href="?Page=<%# previousPage %>">Previous</a> | </PreviousItemTemplate> <NextItemTemplate> | <a href="?Page=<%# nextPage %>">Next</a> </NextItemTemplate> </cms:TemplateDataPager> </td> </tr> </table> |
As you can see, the control uses a standard CMSRepeater control to display data. The pager format is specified using the templates defined between the tags of the <cms: TemplateDataPager> element.
3. Modify the code-behind so that it looks like this (the class name and type may be different):
[C#]
using CMS.GlobalHelper;
public partial class CMSControlsExamples_TemplatedDataPager : ControlsExamplesPage { public string pageCount = "1"; public string previousPage = "1"; public string nextPage = "";
/// <summary> /// OnInit override /// </summary> /// <param name="e"></param> protected override void OnInit(EventArgs e) { // Disable repeater pager and databindbydefault CMSRepeater1.EnablePaging = false; CMSRepeater1.DataBindByDefault = false;
base.OnInit(e); }
protected void Page_Load(object sender, EventArgs e) { // Get repeater datasource TemplateDataPager1.DataSource = CMSRepeater1.DataSource;
// Set page size TemplateDataPager1.PageSize = 1;
// Set current page from query string TemplateDataPager1.CurrentPage = ValidationHelper.GetInteger(Request.QueryString["Page"], 1);
// Get page number for last link pageCount = ((int)(TemplateDataPager1.PageCount - 1)).ToString();
// Set default next page link nextPage = pageCount;
// Set previous link if ((TemplateDataPager1.CurrentPage - 1) >= 1) { previousPage = ((int)(TemplateDataPager1.CurrentPage - 1)).ToString(); }
// Set next link if ((TemplateDataPager1.CurrentPage + 1) <= (TemplateDataPager1.PageCount - 1)) { nextPage = ((int)(TemplateDataPager1.CurrentPage + 1)).ToString(); }
// Set paged datasource to the repeater and databind it CMSRepeater1.DataSource = TemplateDataPager1.PagedData; if (!DataHelper.DataSourceIsEmpty(CMSRepeater1.DataSource)) { CMSRepeater1.DataBind(); } } } |
This code binds the TemplateDataPager to the CMSRepeater.

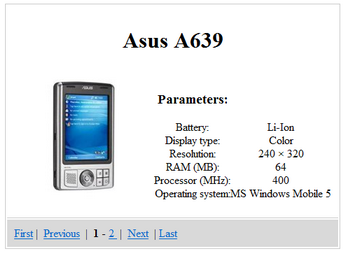

4. Save the changes to the web form. Now right-click it in the Solution explorer and select View in Browser. The resulting page should look like this:
